Alargamiento mínimo | Diámetro 8-20 mm 14% ; 22-36 mm 12% |
---|---|
Composición Química | Carbono: Máx. 0,30% ; Manganeso: Máx. 1,50% ; Silicio: Máx. 0,50% ; Fósforo: Máx. 0,035% ; Azufre: Máx. 0,045% |
Diámetros | 8 hasta 36 mm |
Doblados | 180 grados |
Fluencia Máxima (MPa) | 540 (INEN-2167) |
Fluencia Mínima (MPa) | 420 (INEN-2167) / 235 (INEN-2222) |
Grado de acero | Grado 42, Según norma INEN |
Longitud | 6, 9 Y 12 m. |
Norma | INEN-2167 / ASTM-A706. INEN-2222 |
Nota | Se fabrican Varillas con Longitudes especiales según acuerdo previo con el cliente |
Resistencia máx. (MPa) | 470 (INEN-2222) |
Resistencia Mín. (MPa) | 550 (INEN-2167) / 340 (INEN-2222) |

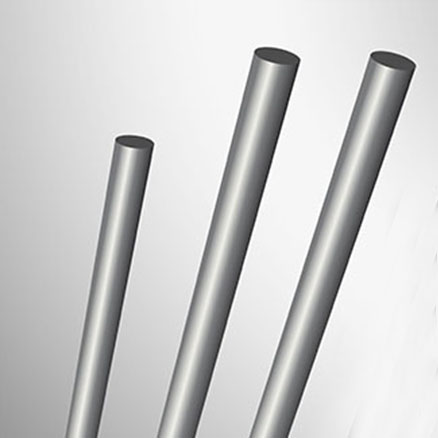

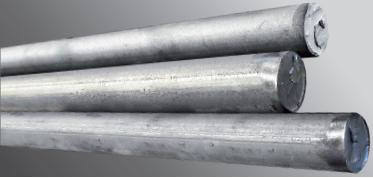

The Smooth Bars are elements of low-alloy carbon steel, weldable, circular section, hot rolled and / or heat-treated by controlled cooling, guaranteeing greater ductility in work on site and in industrial cutting and bending processes. It can be manufactured under the INEN-2222 standard or under the INEN-2167 standard.
The smooth bars manufactured according to the INEN-2222 standard are of the locksmith type (Creep Min. 235 MPa).
The smooth bars manufactured according to the INEN-2167 standard, are structural (Creep Min. 420 MPa)
